WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

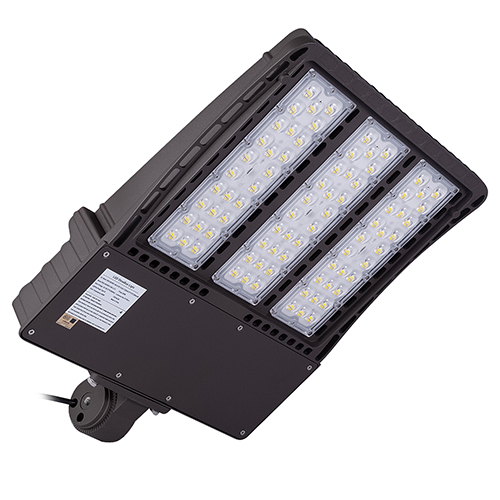

300W LED SHOEBOX LIGHT

Item No.:
WSD-SB30W27-XXK-Z-TN-U-Y
WSD-SB30W48-XXK-Z-TN-U-Y
Description

Product Specification

fin 300W LED SHOEBOX WSD-SB-300W Product Specification.pdf

300W LED SHOEBOX WSD-SB30W IES.rar



Product Features:

● High efficiency LED Driver, the wide range input voltage AC100-277V or AC277-480V
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.

● Photocell control available ( Option)



Product Applications:

WSD LED SHOEBOX Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.



Structure Features:

●Shell material:Aluminum & PC
●Color: Dark Bronze / White
●Net weight:11.50Kg



Technical Parameters:

Type

WSD-SB30W27-XXK-Z-TN-U-Y

WSD-SB30W48-XXK-Z-TN-U-Y

Power 300W Lighting Angle Type II, III, V, Vs.
Input Voltage AC120~277V or AC277~480V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 39000 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable 3 core, 18AWG
